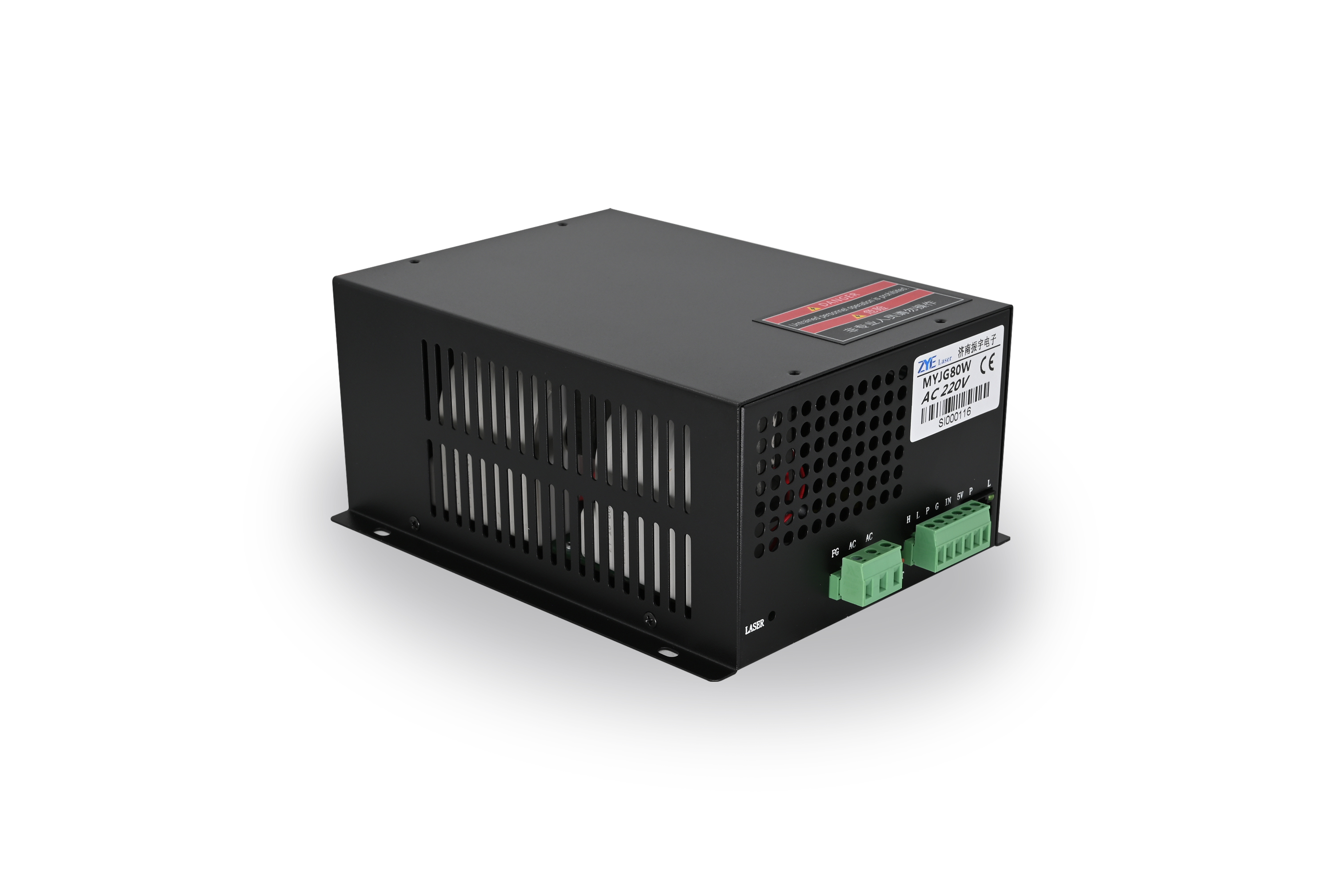

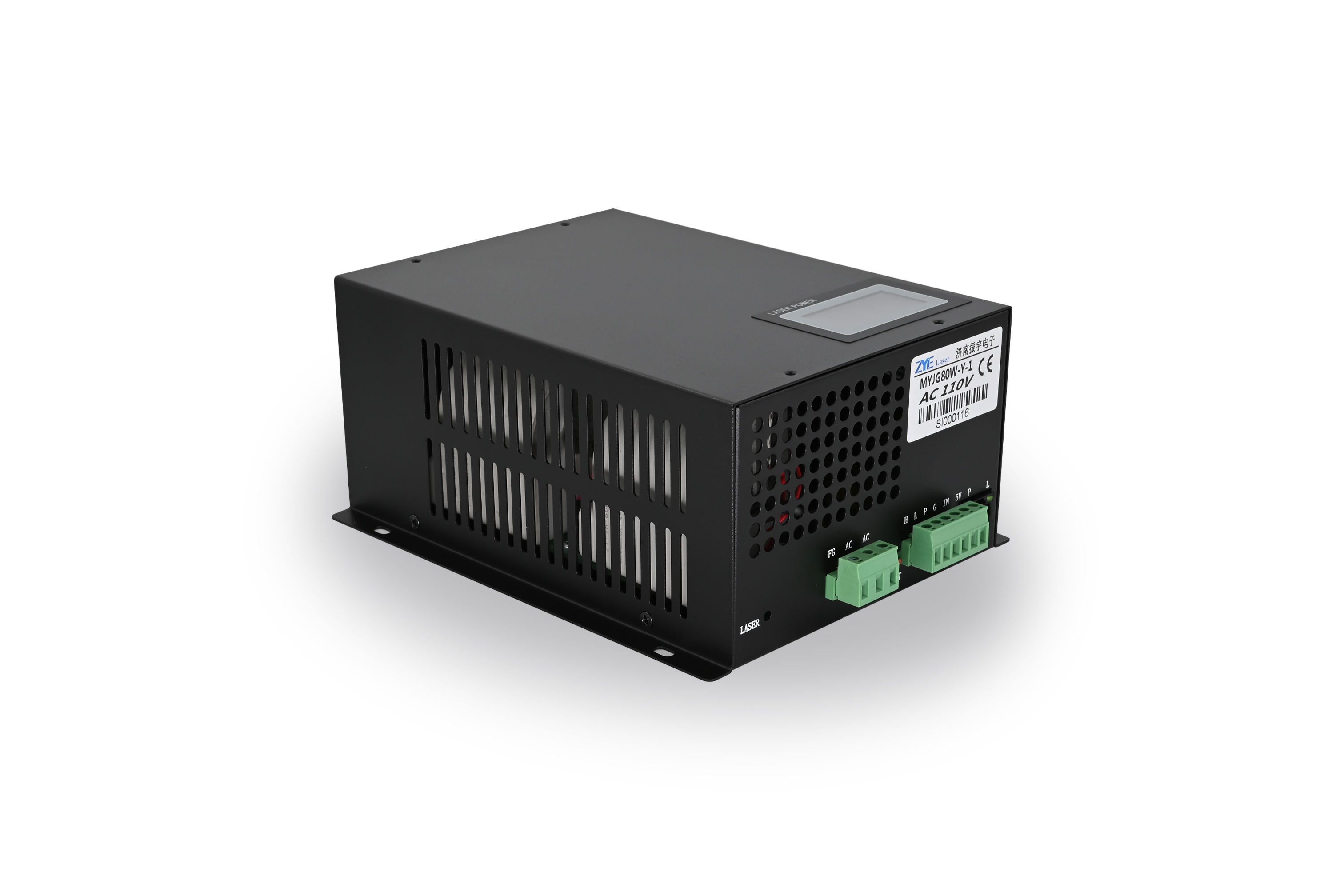

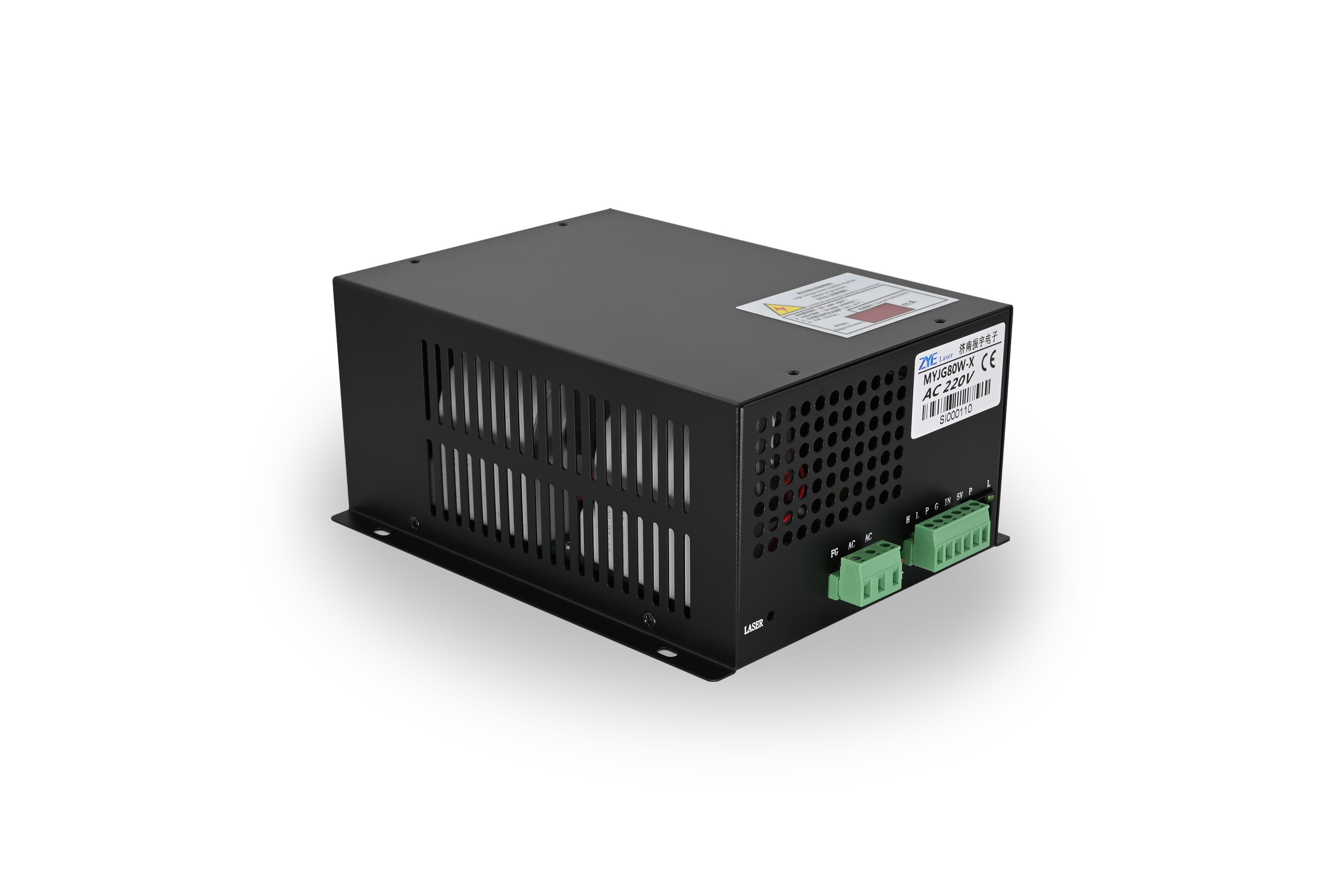

MYJG-100 100W CO2 laser power supply

1. Features:

This new type laser power supply adopts module design . It can automatically detect and display laser power supply’s signal and water protection signal. All model power supply’s installation holes are the same with each other which makes professional assembly line very each in factory. Also it is good for machine user’s replacement or upgrade

This laser power supply adopts zero current and half bridge soft switch circuit, it makes the power supply have high efficiency and quick response speed. Thus it is easy to match with CO2 laser tube made by any factories.

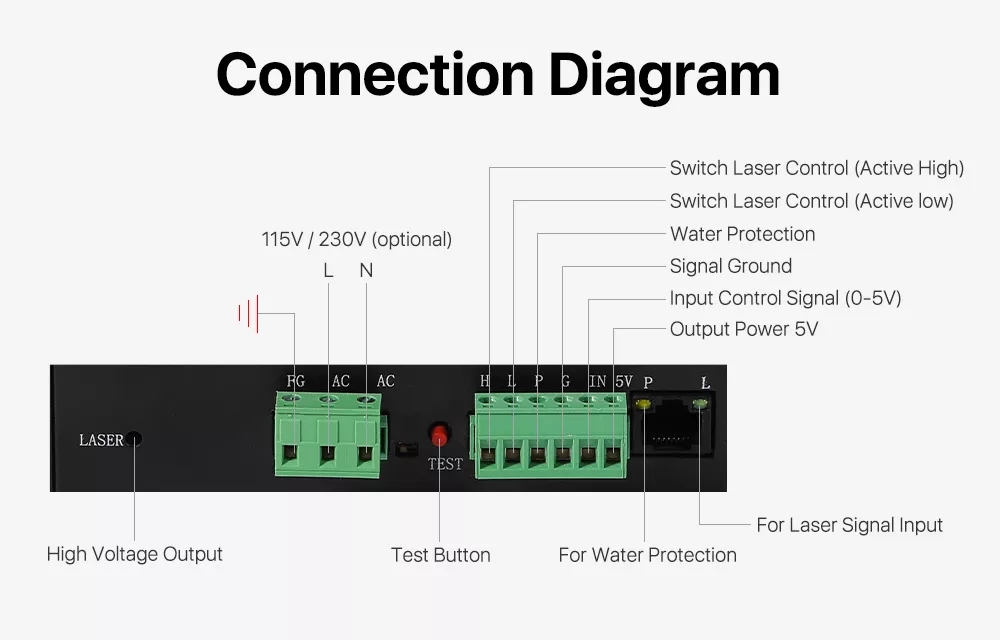

This laser power supply is easy to be controlled, it is suitable to High or Low level signal. The TTL level can control start or stop of laser output. While the power supply has emergency protection switch which can indicate water through and ventilation.

The laser output power can be adjusted by 0-5V analog signal or PWM signal.

This laser power supply has open cirsuit protection function. When protective earthing is good, the laser power supplycan be in open circuit status during short time. This function canprotec power supply when laser tube burst.

Aging test:Each laser power supply must pass this test which is taken at 60 degree centigrade for 12 hours in full load status. And the power supply must start and stop at each 7 seconds for 500 times. In this way we can ensure the laser power supply is qualified.

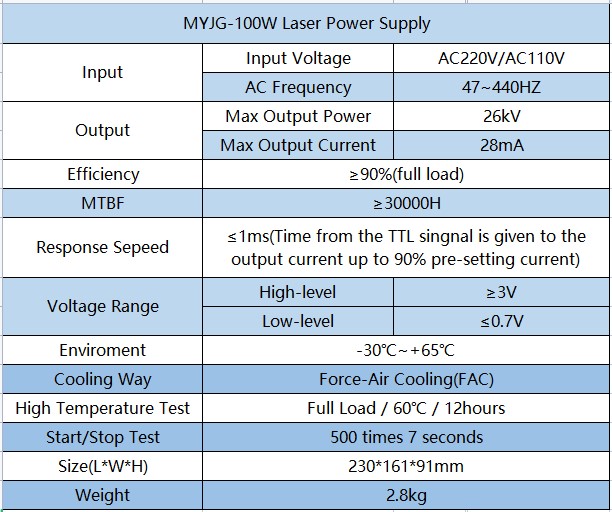

2.Specification:
